| Panel size | 15 inch TFT-LCD Touch Screen Monitor | ||||
| Display area | 304*228mm | ||||
| Standard Resolution | 1024*768 | ||||
| Number of Colors | 16.7M | ||||
| Brightness | 300cd/m2 | ||||
| Response time | 5ms | ||||
| View angle | Horizontal:160°/Vertical:140° | ||||
| Contrase ratio | 1000:1 | ||||

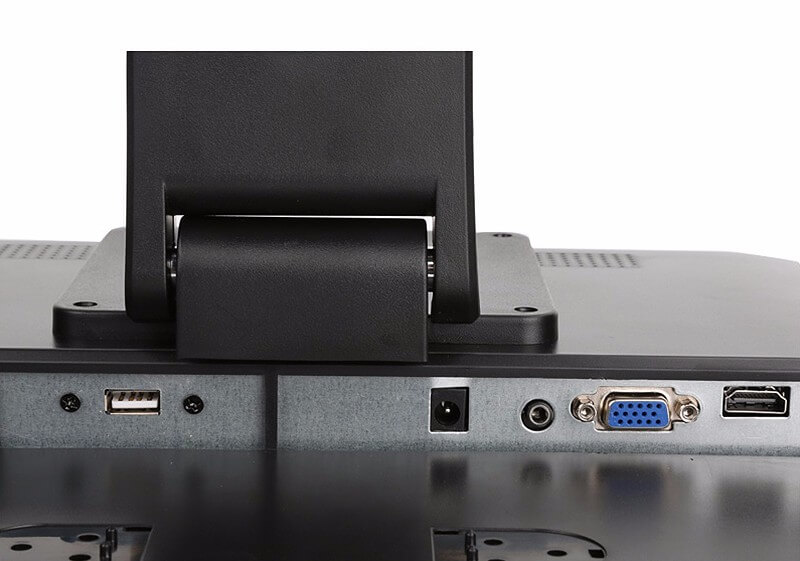

| Connector | VGA for video signal | ||||
| USB (or RS232) for touch | |||||
| Power supply | External Power Supply:100 to 240V (DC 12V) | ||||
| Touch model | 4-wire resistive touch | ||||
| Optional | (5-wire resistive touch,SAW,Infrared touch optional) | ||||
| Duration | 50000hours | ||||
| touch validity | >1,000,000 | ||||
| Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm | ||||
| 2) provide stable mental base to support the monitor | |||||
| OSD control | AUTO,+,POWER,-,MENU | ||||
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |||||
| Touch interface | USB or RS232 optional | ||||
| Touch response time | 2ms | ||||
| Operation system | Windows,Linux,Mac. | ||||
